QuantumPhonic is here!

Sound delivery has always been an issue fo Theatres, Auditoriums, Halls, Churches and Even Centers. QuantumPhonic has completely changed that!

Scroll through Links below for Technical Information:



• Link 1
• Link 2
• Link 3
• Link 4
• Link 5
• Link 6
• Link 7
• Link 8
• Link 9
• Link 10

RezCom Systems LLC is the Worldwide Distributor of the incredible Commercial SoundLab® Inc. Speakers.

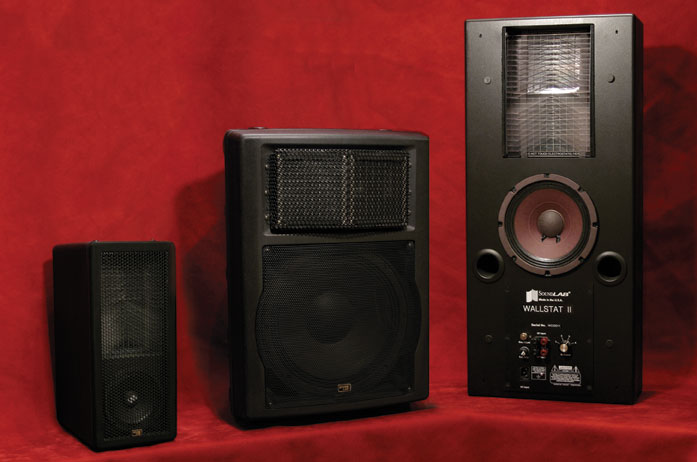

QuantumPhonic Sound Delivery Systems can be configured in a myriad of forms for the commercial audio world.

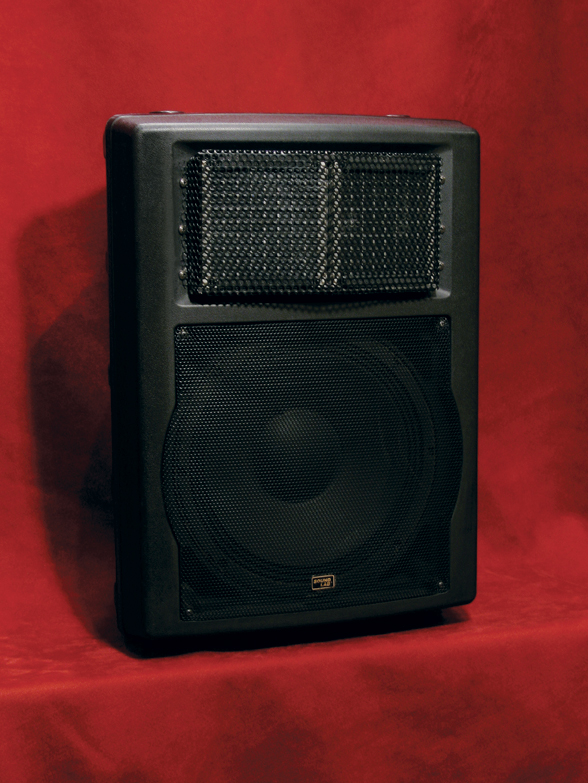

• Concert Master:

  Frequency Response:

  50 Hz to Ultra-sonics

  Audio Power:

  Maximum: 400 "music" Watts
  Minimum: 50 Watts

  Drivers:

  High Frequency Low-mass membrane panels (2)
  Low-Frequency 12" diameter, 4" voice coil, heavy duty cast frame

  Horizontal Dispersion:

  45 degrees


  Vertical Dispersion

  22 degrees

  Impedance:

  Nominally 6 ohms

  Sensitivity:

  97 dB at 1 metre - 1 Watt

  Controls:

  Brilliance and Bias Self Bias

  Size:

  Height: 23.11 in / 58.7 cm Width: 16.75 in / 42.5 cm
  Depth: 13 in / 33cm

  Weight:

  50 lbs / 22.7 kgs

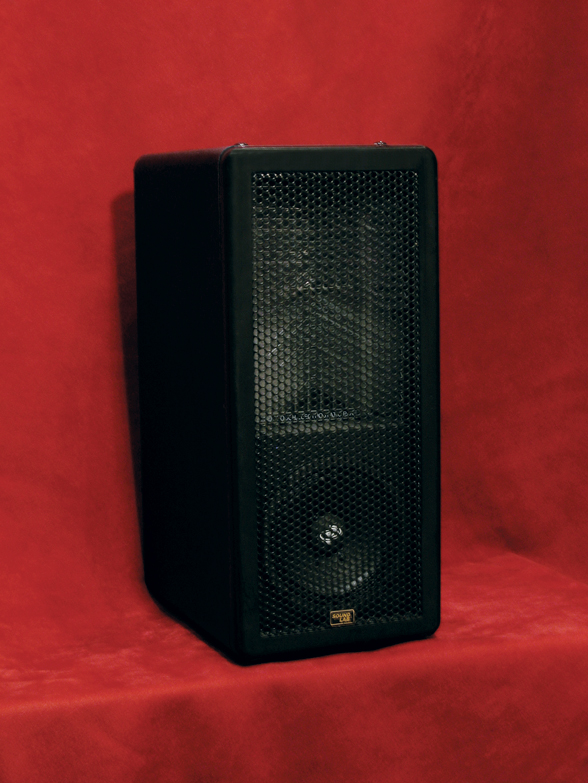

• Comstat

  Frequency Response:

  50 Hz to Ultra-sonics

  Audio Power:

  Maximum: 250 "music" Watts
  Minimum: 50 Watts

  Drivers:

  High Frequency Low-mass membrane panels
  Low-Frequency 6.5" diameter, 1.5" voice coil

  Horizontal Dispersion:

  90 degrees Vertical Dispersion 30 degrees

  Impedance:

  Nominally 8 ohms

  Crossover Frequency:

  950 Hz

  Sensitivity:

  100 dB at 1 metre - 1 Watt

  Controls:

  Brilliance and Bias Self Bias

  Size:

  Height: 20 in / 50.8 cm Width: 9 in / 22.9 cm
  Depth: 13 in / 33 cm

  Weight:

  32 lbs / 14.5 kgs

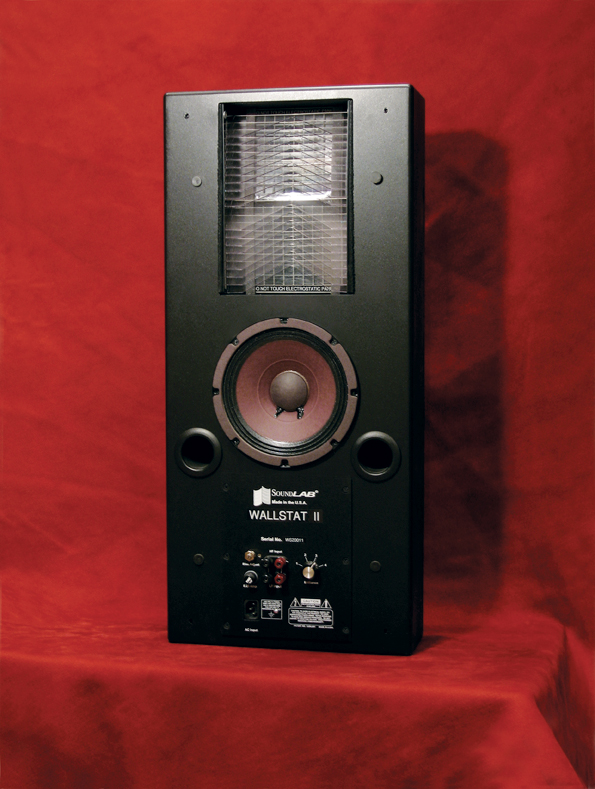

• WallStat II

  Frequency Response:

  50 Hz to Ultra-sonics

  Audio Power:

  Maximum: 250 "music" Watts
  Minimum: 50 Watts

  Drivers:

  High Frequency Low-mass membrane panels
  Low-Frequency 8" diameter, 2" voice coil, Heavy duty cast frame

  Horizontal Dispersion:

  90 degrees Vertical Dispersion 30 degrees

  Impedance:

  Nominally 6 ohms

  Crossover Frequency:

  959 Hz

  Sensitivity:

  97 dB at 1 metre - 1 Watt

  Controls:

  Brilliance and Bias Self Bias

  Size:

  Height: 31 in / 78.7 cm Width: 14 in / 35.6 cm
  Depth: 6 in / 15.2 cm

  Weight:

  32 lbs / 14.5 kgs

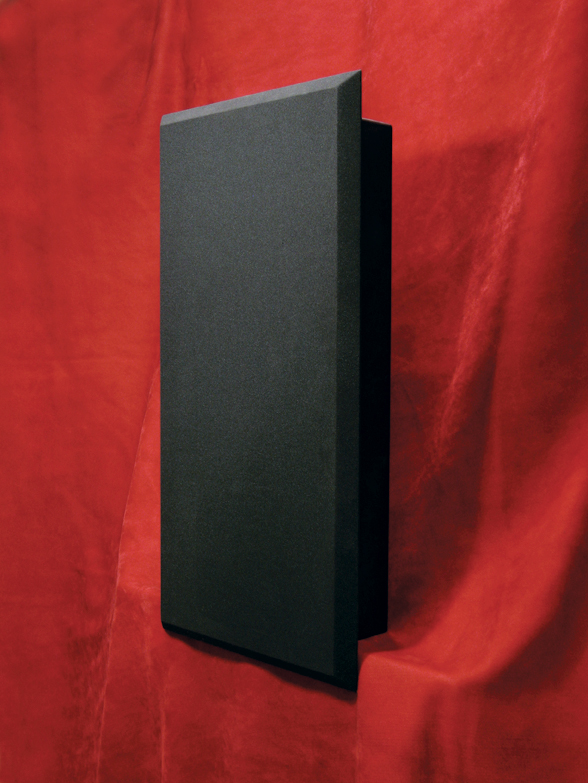

• WallStat II Cover

  A Standard Black cover is included with each WallStat II purchase.

  The WallStat II Cover has been designed to overlap the WallStat II when recessed into a wall. Covers can be customized for any environment without restricting sound.

  Size:

  Height: 35 in / 88.9 cm Width: 18 in / 45.7 cm
  Depth: 1 in / 2.5 cm

  Weight:

  9 lbs / 4.1 kgs
